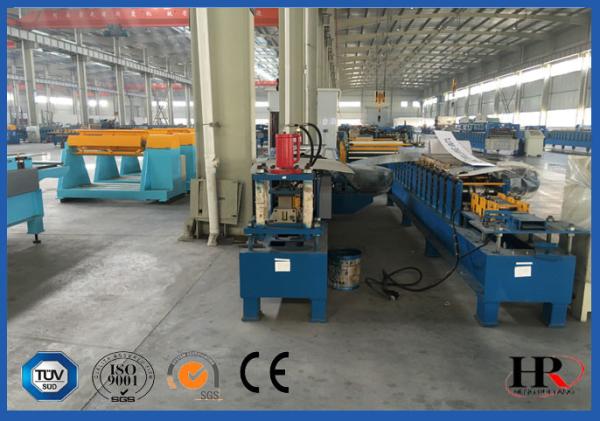

    Complex Electrical Box Rack Frame Making Machine For Controls Boxes

    Ask Lasest Price
    Brand Name : Shenghong
    Model Number : SWL151224-174
    Certification : CE ISO SGS
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 10 sets/month
    Delivery Time : 45Days
    • Product Details
    • Company Profile

    Complex Electrical Box Rack Frame Making Machine For Controls Boxes

    Complex Electrical Box Rack Frame Making Machine For Controls Boxes


    Electrical Cabinet Rack Roll forming machine Technology specification

    1. The whole Roll forming equipment components is depended on client individual request.
    2. The possible auxiliary equipments are included de-coiler, straightening device, pre-and post-punching, stationary cut-off machines, run-out table, etc.
    3. Electrical Cabinet roll forming machine several basic units showed as following



    Main parameter Electrical Cabinet profile Roll Forming Machine


    Line structure

    Portal-type frame style, A3 steel

    Forming Roller Stations:

    25 Stations

    Forming Roller shaft:

    Φ60mm

    Forming rollers

    Cr12Mov, Quenching, hardness HRC58-60º

    Forming Speed:

    0 -10 meters / min

    Main motor:

    30kw,

    Material of Sheet:

    Soft Quality (Annealed) Galvanized Sheet

    Sheet Thickness:

    1.5mm-2.5mm

    Cutter Device

    Hydraulic press or saw style is optional


    Roll forming machine for production Electrical Cabinet Introduction

    1. With roll forming advantages, Electrical cabinets profile sections have a much wider scope of cross section if compared with press braked sections and without length limitation.
    2. Roll Forming Production speed is much faster than with press brakes, particularly production complex profiles without secondary operations.
    3. From simple profile to complex profiles, we can manufacture custom electrical cabinet roll forming machine.

    Metal Track profiles as reference


    We invite inquiry for any of your custom metal track information, let us know your requirements, we will find the best solutions to meet your project.
