Main Components
1. Manual Decoiler: one set
Un-powered,Manually control steel coil inner bore shrinkage and
stop,
Max. feeding width: 1250mm, coil ID range 470mm±30mm
Capacity: Max. 5 Ton

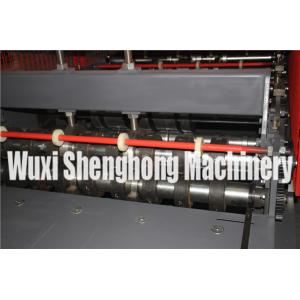

2. Main machine:
With feeding material guide, body frame made from H type steel by
welding;
Rollers manufactured from 45#, precision machined, hard Chrome
Coated;
Shafts Diameter=ф75mm,precision machined
Gear/Sprocket driving, about 16steps to form
Main Motor=5.5KW , Frequency speed control
Forming speed approx.5m/min
3. Hydraulic Cutting device:
Cutter frame made from high quality 20mm steel plate by welding
Post cut, stop to cutting
Pump motor: 5.5KW Cutting pressure: 0-12Mpa
Cutting tool material: Cr12, Heat treatment
4. PLC Control System(key components use international famous brand
Japan PANASONIC/MITSUBISHI or German
Schneider Electric/Siemens or Taiwan Delta)
Control the quantity and cutting length automatically
Combined with: PLC, Inverter, Touch Screen, Encoder, etc
Cut-to-length tolerance≤±2 mm
Control Voltage 24V
5. Exit Rack Un-powered, two units
6. User's manual in English
Drawing for the Roof Tile Machine
| Type | Name | Effective Width | Feeding Width | Thickness |
| Roof Tile Machine | 948mm | 1200mm | 0.35-0.65mm |
Features of Roof Tile Machine
Different tile roof forming machines can produce different shapes
of steel tile roof sheets in various thickness and colors. Steel
tile roof sheets are the new substitutes for traditional clayey,
concrete tiles. They are more popular because of the low cost,
short building period, re-cycle use, and elegant appearance. They
are used as the roof of villas, luxury houses, theatres, exhibition
centers, etc.
The complete roof tile machine line includes decoiler, main
machine, computer controlling system and run out tables. Our
machines are equipped with a computer controlling system. We simply
program the pieces and length we need in the computer and the roof
tile machine produces it automatically. The machines are easy to
operate and running stable.
After-sale Service
1. The warranty of the machine is one year after the client
receives the machine. Within the one year, we will courier the
replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in
the clients' factories.
Terms of trade
1. Minimum order quantity (MOQ): 1 piece
2. Delivery time: 45 days
3. Port of loading: port of shanghai / ningbo
4. Type of payment: T/T
5. Export: Australia, Ireland, Poland, Mexico, India, Iran, Dubai,
Sri Lanka, Philippines, Iraq, and others.
As an experienced roof tile machine manufacturer and supplier based
in China, shenghong machinery provides a wide range of products
that includes glazed tile forming machine, guardrail forming
machine, sheet slitting line, construction roof panel forming
machine, and more.
