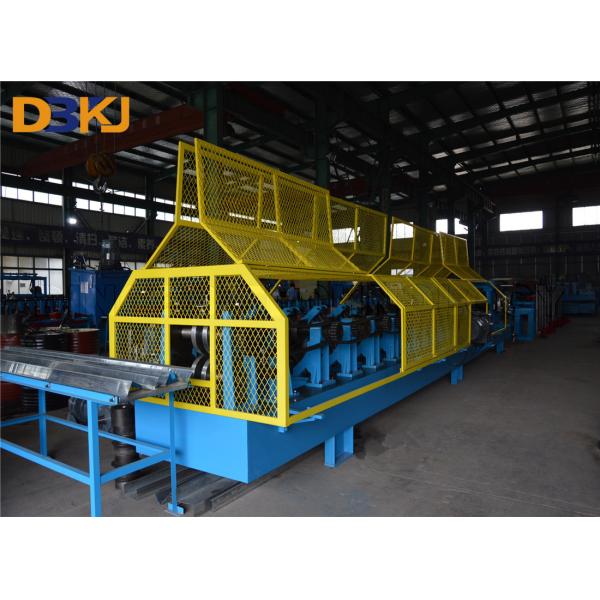

Automatic changeable CZ purlin roll forming machine

Product Descriptions

In the steel industry, different purlin structural shapes were given representative names to facilitate the easy description of drawings and documents. Channel sections, with or without flange stiffeners, are usually referenced as C purlin; The channel section without flange stiffeners is also called U purlin. Point symmetry with a shape similar to the letter Z is called a Z purlin.
Automatic change CZ purlin roll forming machine can produce any specifications of the C&Z profiles (during the width 100~300), no need changing any parts of the machine. It takes one hour to change C shape to Z shape.

Profile drawing to design

Working Flow

hydraulic uncoiler -- straightening -- roll forming part -- hydraulic cutting -- runout table

Product Parameters

1.Raw material type: Steel coil/Galvanized coil(optional)
2.Thickness: 1.5-3.0mm
3.Roller material: GCr15/Cr12
4.Shaft material: High Grade No.45 Forged
5.Forming Stations: 18stations
6.Control type: PLC (customer's requirement)
7.Driven type: Chain drive
8.Main power: 18.5kw
9.Cutting Blade Material: Cr12Mov

Main Components

Pictures

Company introduction

We are located in Jiangyin city, Jiangsu province, specializes in manufacturing various types of high speed, high precision roll forming machines, with more than 20 years’ experience. It has gained highly praise by customers from all over the world, due to top quality and competitive price of the products. Company principle: top quality, low price.

We a professional manufacturer of cold forming equipment (especially high difficulty cold formed steel), wins the trust of customers by its honesty, pragmatic operation philosophy, advanced technology, innovative design thinking, excellent quality, superior after sales service, competitive price, etc.

Main products

We mainly produce all kinds of roof/ wall tile roll forming machine, C purlin, Z purlin, C&Z interchangeable purlin roll forming machine, uni channel forming machine, rack shelf roll forming machine, guardrail roll forming machine, cable tray roll forming machine, metal deck roll forming machine, down pipe roll forming machine, rolling shutter door roll forming machine, auto stacker, EPS/PU sandwich panel production line, slitting line, cut to length line, tube mill, etc, mainly in construction use.

After sale service

1). Engineer will give free training lessons to labors in buyer’s factory.

2). The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 for engineer per day.

3). During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.

4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.
